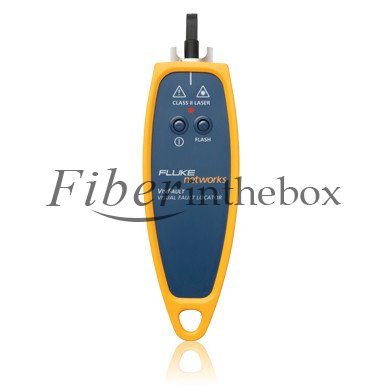

Fluke VisiFaultTM Visual Fault Locator - Cable Continuity Tester

Overview

In today's fast-paced workplace maximizing productivity is essential. Whether installing new fiber links or troubleshooting an existing network, the faster you can locate a problem, the faster you can fix it. That's easier said than done when you are faced with a complex network of fibers, connectors and patch cords.

You can diagnose and repair simple fiber link problems with Fluke Networks' VisiFaultTM Visual Fault Locator(VFL). The laser-powered VisiFault locates fibers, verifies continuity and polarity. This cable continuity tester helps find breaks in cables, connectors and splices. Continuous and flashing modes make for easier identification. Compatible with 2.5mm and 1.25mm connectors for easy connection. Ruggedly constructed for demanding field-testing. Long battery life for hours of use.

Features

Locates faults including tight bends, breaks and bad connectors Accelerates end-to-end fiber checks Easily verifies polarity and identifies fibers Features continuous and flashing modes Ergonomic case survives drops, impacts and vibrations Suppo s 2.5 mm and 1.25 mm SFF connectors Over 80 hours of battery life with two AA batteries

Application

Specifications

Optical
Fiber compatibility	Multimode and Singlemode
Wavelength	650 nm (visible wavelength)
Laser safety rating	Class II
Output power	< 1.3 mW
Output modes	Continuous (steady) and flashing (2-3Hz pulsed)
Range	3 km multimode, 4 km singlemode
Environmental and mechanical
Operating temperature	0 °C to 40 °C
Storage temperature	-20 °C to 60 °C
Relative humidity	95% (10 to 35 °C)
Vibration	Random, 2g, 5-500 Hz
Shock	1 m drop onto all corners and face
Altitude	3000 m
General
Dimensions	157 x 52 x 37 mm (6.2 x 2.0 x 1.3 inch)
Weight (including batteries)	0.18 kg (5.7 oz)
Adapter	2.5 mm universal
Adapter cap	Tethered protective end cap
Controls	On/off, continuous/flashing
Battery type	2 x AA
Battery life	> 80 hours in continuous mode
Safety	CSA C22.2 No. 1010.1 1992, EN 61010-1, CE
Carrying Case	Soft sided with belt loop
