2m Cat6 Unshielded Snagless Molded Patch Cable

SKU#:FITB78245MIT
Model#: Cat6-UTP-SM-2-FITB
Price: US$ 6.30
Sold: 4974
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

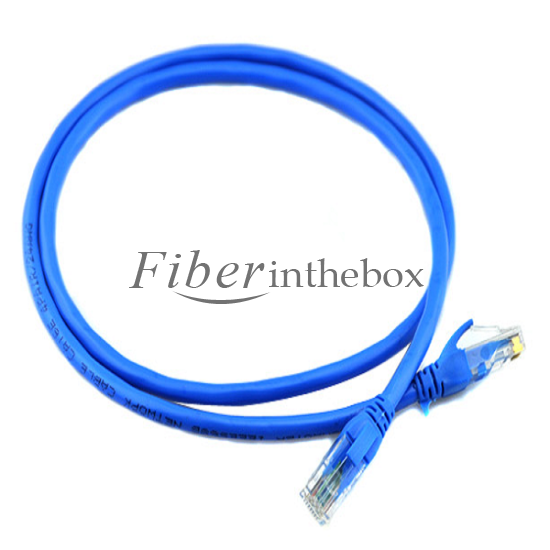

2m Cat6 Unshielded Snagless Molded Patch Cable
The Cat6 unshielded snagless molded patch cable constructed from high quality cable and a sho ened body plug, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. For voice/data/video distribution, this cable will handle bandwidth-intensive applications. And meets all Cat6 TIA/EIA-568-B-2.1, draft 9 standards, and drastically reduces both impedance and structural return loss (SRL) .Fiberinthebox supply a perfect custom service, and any length and any colors are available. Available in a variety of colors to easily color-code your network installation.
Key Features
UTP Cable with snagless bootCable construction: stranded, 24-AWG copper wire, RJ-45 connectors, 4-pair, T568B, PVC jacket, straight-pinned For 1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI, and other high-speed applications Perfect for full broadband and baseband video Stranded cable delivers full Power Sum performanceProvides full-duplex operation for next-generation applicationsMeets balance requirements (LCL/LCTL), resulting in better transmission
Specifications
Attenuation:23.6 dB at 100 MHz; 39.1 dB at 250 MHz Conductor Gauge :24 AWG Delay Skew (Maximum) : 25 ns/100 m (328 ft.) Impedance: 100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100–550 MHz Mutual Capacitance : 56 pF/m (maximum) NEXT : 45.0 dB at 100 MHz; 39.0 dB at 250 MHzPS-ACR : 32 dB (typical) at 100 MHzPS-NEXT : 43.0 dB at 100 MHz; 37.0 dB at 250 MHzResistance (Maximum): 9.09 ohms/100 m (328 ft.) Return Loss : 22.5 dB at 100 MHz; 20.5 dB at 250 MHzStandards : TIA/EIA-568-B.2-1 Category 6Structured Return Loss: 22.5 dB at 100 MHz; 20.5 dB at 250 MHz
Applications
For 1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI, and other high-speed applicationsPerfect for full broadband and baseband video This cable work with CAT6 Patch Panels, CAT6 Jacks, Wallplates, Surface-Mount Housings, Snap Fittings etc.
