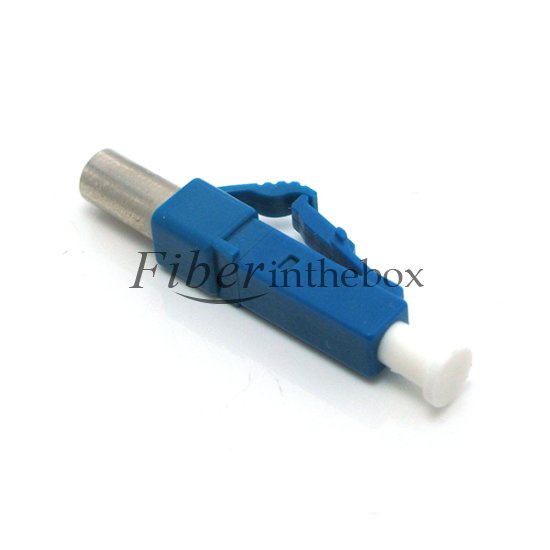

LC/UPC 9/125um Single-mode Low Reflection Fiber Optic Terminator Connector

SKU#:FITB63378TEB
Model#: FOT-LC-UPC-FITB
MFG PART#: FOT-LC-UPC-FS
Price: US$ 8.55
Sold: 1502
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Fiber Optic Terminator

Optical Terminators are functional devices using Metal-lon Doped fibers. These products prevent the reflection of light that are present at open end systems. Fiber optic terminator can terminate unused fiber connector po s in optical fiber systems . Fiber opticterminators are passive components that absorb light coming from unterminated connector plugs. By minimizing the reflected power, the terminator can reduce signal degradation in digital and analog systems.

Specifications
Return Loss: UPC >55 dB, APC >65 dB Back Reflection: APC < -65dB, UPC < -55dB Temperature Cycling: -20℃~-80℃ Polishing Grade: PC, UPC, APC Connector Type: SC, FC, ST, LC,MU Fiber type: SM(9/125㎛) Optical performance 100% factory tested Easy installation as plug type Precision ceramic ferrule with endface Geometry per IEC proposal Environmentally stable Adapt attenuation point to creating termination effect
Applications
Telecommunication Networks Instrumentation CATV Networks Active Device Termination EDFA
