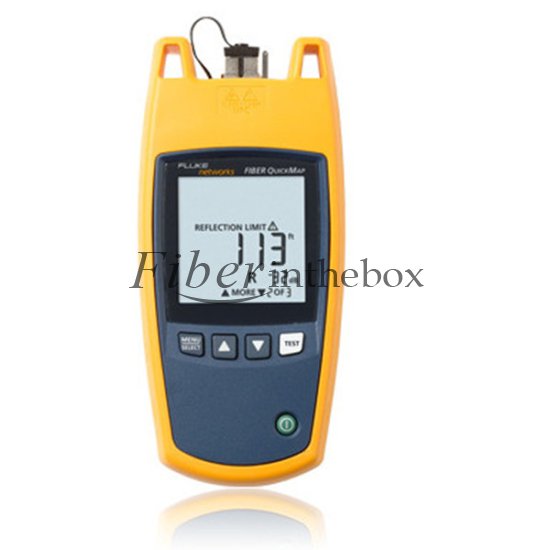

Fluke Networks FQM-MAIN Fiber QuickMap

Overview

As more OM3 and OM4 multimode fiber is installed in enterprise networks to suppo 10, 40, and 100 gigabit traffic, fiber infrastructure reliability has never been more critical. As such, the essential capability for enterprise technicians to measure and troubleshoot individual components of the overall fiber channel to prevent network downtime (or to hasten its recovery) is considered one of the Fiber Best Practices. It is no longer acceptable for the technician to spend costly time troubleshooting using a trial and error process before elevating the issue to another technician with OTDR experience. Every technician should have the network tester tools "on their belt" capable of pinpointing the problem within seconds.
Fluke Networks' Fiber QuickMap is an enterprise fiber troubleshooter that quickly and efficiently locates connections and breaks in multimode fiber. By instantly providing distances to failures such as high loss and high reflectance incidents, Fiber QuickMap is the must-have network tester for any technician who works with fiber.

Features

One-button testing – can be used straight out of the box with no user-setup required Six-second test time, eliminating blind troubleshooting that can last hours Locate multiple incidents in the channel to provide full visibility of any potentially problematic links and connections Locate high loss incidents or breaks, the most common causes of multimode fiber failure Locate and measure high reflective incidents, which cause poor network performance with bit error rates Various kit configurations include additional diagnostics tools such as power meters, sources, and fiber inspection microscopes to facilitate Fiber Best Practices and to boost the troubleshooting capability of technicians Perfect data center cabling network tester

Order Information

Model Number/Name	Description
FQM-MAIN	Fiber QuickMap Enterprise Fiber Troubleshooter with carrying pouch
FQM-KIT	Fiber QuickMap™ mainframe with SC/LC 50 µm Launch Fiber, Interchangeable LC Adapter and carrying pouch
FTS900	Fiber QuickMap Kit: Includes Fiber QuickMap, SC/ LC (50 and 62.5 μm) hybrid test reference cords, VisiFault VFL, and carrying pouch
FTS1000	Fiber QuickMap Troubleshooter Kit: Includes Fiber QuickMap, SC/SC and SC/LC (50 and 62.5μm) hybrid test reference cords cords, VisiFault VFL, SimpliFiber Pro power meter and multimode source, and carrying case
FTS1100	Fiber QuickMap Troubleshooter Kit: Includes Fiber QuickMap, SC/SC and SC/LC (50 and 62.5μm) hybrid test reference cords cords, VisiFault VFL, SimpliFiber Pro power meter and multimode source, FT500 FiberInspector Mini video microscope,and carrying case

Specifications

Models
Operating temperature with the battery	0ºC to 50ºC
Non-operating temperature	-20ºC to 60ºC
Operating relative humidity (without condensation)	95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
Vibration	Random, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2
Shock	1 meter drop test
Altitude	3000m
EMC	EN 61326-1: 2004
Battery type	2 AA alkaline batteries (no battery charger)
Battery life	1500 tests (typical)
Laser safety	Class 1 CDRH Complies to EN 60825-2
LCD type	Backlit black and white (segments)
Index of refraction range	1.45 to 1.5 (factory default is 1.496)
Auto turn off	Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.
Factory calibration interval	None
Output wavelengths	850 nm ± 10 nm
Laser classification	Class 1 CDRH Complies to EN 60825-2
Dynamic range	>11 dB
Maximum distance	1500 meters or 4921 feet
Maximum number of incidents shown	9
Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft)	± (1 m + 0.1 % x length) for reflective incidents1 ± (3 m + 0.1 % x length) for  non-reflective incidents2
Testing speed	< 6 seconds typical
Connector	Removable/cleanable SC adapter, UPC polish
Fiber types tested	50/125 µm or 62.5/125 µm multimode
Detection of reflective incidents3	-35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)
Reflectance accuracy4	± 4 dB
Maximum reflectance measurement	-20 dB
Detection of loss incidents5	0.70 dB default threshold (user-configurable from 0.5 dB to 6.1 dB in 0.2 dB increments)
Bulkhead quality	If no fiber is attached or if the connector is dirty, the troubleshooter displays 0 m or 0 ft.
Live fiber detection	Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a  signal is there. Looks for a signal every 3 seconds after the first detec-tion. +7 dB maximum input power.
Certifications and compliance	Conforms to relevant European Union directives
	Conforms to relevant Australian standards
	Listed by the Canadian Standards Association CSA
	C22.2 No. 61010.1.04 Conforms to FCC Rules, Part A, Class A
1. ± user-configurable Index of Refraction (IOR) error ± the incident location error. Incident location error for reflective incidents:  ±1 m from 1 m to 1.5 km.
2. ± user-configurable Index of Refraction (IOR) error ± the incident location error. Incident location error for non-reflective incidents:  ±2 m for lengths £15 m, otherwise ±1 m.
3. Finds and gives the location of an incident that has a reflectance larger than -55 dB. Detects incidents >1m after the bulkhead  connector when the bulkhead reflectance is <35 dB. Detects incidents >3 m after an incident when the incident reflectance is <35 dB.
4. With a backscatter coefficient of -63 dB at 850 nm using a calibrated -14 dB reference.
5. Detects incidents >10 m after the bulkhead connector or any prior incident when the bulkhead reflectance is <-35 dB and the  reflectance of any prior incident is <-35 dB. The maximum link loss prior to the incident is <7 dB.
