96 Fibers 5 In/Out S010 Series Heat Shrinkable Type Vertical/Dome Fiber Optic Splice Closures

SKU#:FITB01669RQC
Model#: FS010-5IO-96
MFG PART#: FS010-5IO-96
Price: US$ 46.65
Sold: 4748
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 46.65 10-19US$ 45.71 20-49US$ 44.78 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
FS-S010 Series 5 Entries Ve ical/Dome Fiber Optic Splice Closure Max. Capability up to 96 Fibers
Ve ical (Dome) optical fiber splice closures are made of excellent engineering plastics.Fiberinthebox.COM supply different po s types, fittings and different optical fiber core numbers for ve ical/dome optical fiber splice closures. The main application for ve ical optical fiber splice closure is in CATV, telecommunications and optical fiber networks. They are suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried optical fiber cable projects.
Key Features
High-strength engineering plastic shell High mechanical performance Great aging resistant ability Excellent sealing performance Endure harsh conditions such as vibration, impact, tensile cable disto ion and strong temperature changes Does not require special tools, easy to install and open the duplicate. The use of reusable components to open seal in order to ensure a good ai ight waterproof performance. Come with related optical fiber trays and splice protection sleeves The scope of application : aerial, direct-buried, wall-mounting, duct-mounting
Main Technical Parameters
The application of temperature : -40℃~65℃ Atmospheric pressure: 70~106KPa Resist pull: >1000N Insulation resistance: >2×104MΩ Resist pressure: >2000N/10cm2pressure,time 1 min Dielectric strength: 15KV (DC)/1 min spark-over and no flying arc.
Specifications
No. of Cable Inlet/Outlet: 5(one oval po and four round po s) Number of Fibers, Bunchy: 96 Sealing of Shells: Silicon rubber Sealing of Inlet/Outlet po s: Heat-shrinkable tube Length:495 mm, Diameter:220 mm Weight: 3.6kg

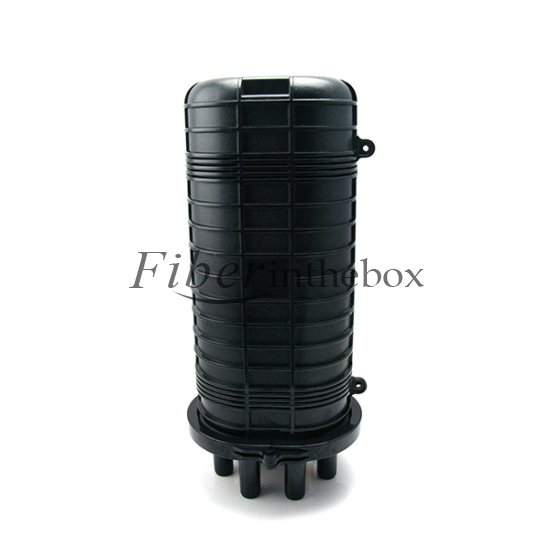

Sample Picture
Specifications

Basic structure and configuration

Dimension and capacity;

Outside dimension (LxD)

495mm×220mm

Weight (excluding outside box)

3000g-3600g

Number of inlet/outlet ports

one oval port and four round

Diameter of fiber cable

Φ8mm - Φ36mm

Capacity of FOSC

Bunchy: 12—432(fibers)

Ribbon: 432(fibers)

Main components


No.

Name of components

Quantity

Usage

Remarks

1

FOSC cover

1 piece

Protecting fiber cable splices in whole

Internal diameter:









355 ×150(mm)

2

Fiber optic splice tray (FOST)

Max. 6 trays (bunchy) Max. 4 trays (ribbon)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)

3

Fiber holding tray

1 pcs

Holding fibers with protective coat



4

Foundation

1 set

Fixing fiber cable, reinforced core and FOST



5

Base

1 set

Fixing internal and external structure



6

Seal fitting

1 pieces

Sealing between FOSC cover and base



7

Pressure testing valve

1 set

After injecting air, it is used for pressure testing and sealing testing

Configuration as per requirement

8

Earthing deriving device

1 set

Deriving metallic parts of fiber cable in FOSC for earthing connection

Configuration as per requirement

Main accessories and special tools


No.

Name of accessories

Quantity

Usage

Remarks

1

Heat shrinkable protective sleeve



Protecting fiber splices

Configuration as per capacity

2

Nylon tie



Fixing fiber with protective coat

Configuration as per capacity

3

Heat shrinkable fixing sleeve (single)



Fixing and sealing single fiber cable

Configuration as per requirement

4

Seal tape



Fixing and sealing mass of fiber cable

Configuration as per specification

5

Branching clip



Branching fiber cables

Configuration as per requirement

6

Earthing wire

1 piece

Putting through between earthing devices



7

Desiccant

1 bag

Put into FOSC before sealing for desiccating air



8

Labeling paper

1 piece

Labeling fiber



9

Special wrench

1 pieces

Tightening nut of reinforced core



10

Metal hoop

1 set

For wall mounting and pole hugging



11

Buffer tube

To be decided by customers

Hitched to fibers and fixed with FOST, managing buffer

Configuration as per requirement

12

Aluminum-foil paper

1 piece

Protect the bottom of FOS
