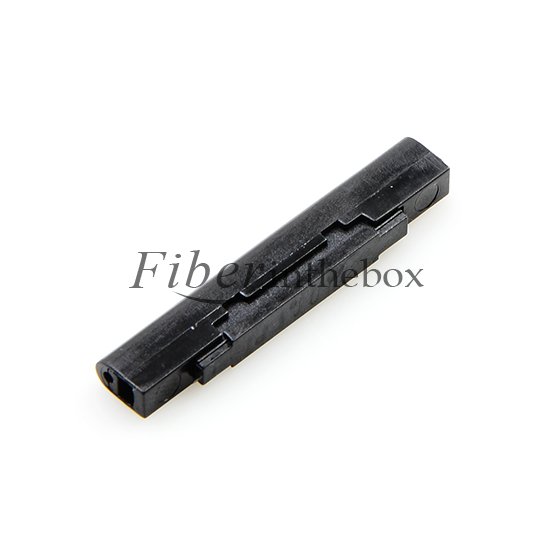

Cable Mechanical Splicer
Cable mechanical splicer take a global leading submicron processing technology, Use core component of high accuracy V groove provide high alignment, its unique structure had got IPR in 2007.
As the first domestic mechanical splicer, the cable mechanical splicer sell well in domestic and abroad market and fill the domestic production of technology and product gaps, cable mechanical splicer have taken great role in FTTH.
As the first domestic mechanical splicer, the cable mechanical splicer sell well in domestic and abroad market and fill the domestic production of technology and product gaps, cable mechanical splicer have taken great role in FTTH.
Features
High precision V-groove as core component Use unique Matching gel validity for 30 years Excellence optical performance, typical IL less than 0.1dB Reliable clamping structure guarantee high tensile strengh(50N online） Assembly simple, repeated use over 10 times improve splicing yield Compact，Po able
Applications
Specifications
| ITEM | Technical Parameters |
| Applicable for | 3.1x2.0 FTTH drop cable |
| Optical fiber diameter | 125μm ( 657A & 657B ) |
| Tight buffer diameter (μm) | 250μm |
| Fiber mode | Single |
| Operation time | About 60s(no fiber cut) |
| Aberage Inse loss | ≤0.20dB(1310nm &1550nm) |
| Return loss | ≥40dB |
| Fastening strength of naked fiber | ＞5N |
| Fastening strength of naked fiber holder | ＞8N |
| Using temperature | -45～+80℃ |
| Repeatability(10 times) | △IL≤0.2dB △RL≤5dB |
