48 Fibers 3In-3Out FS010 Horizontal Fiber Optic Splice Closures

SKU#:FITB09518VMA
Model#: FS010H-3IO-48
MFG PART#: FS010H-3IO-48
Price: US$ 31.83
Sold: 3934
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 31.83 10-19US$ 31.19 20-49US$ 30.55 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
The horizontal (inline) fiber splice closures are produced to provide space and protection for the optical fiber cable splicing and joint. They are with the perfect sealed design which have the function of waterproof and dust proof. We now provide many kinds of horizontal optical fiber splice closres which vary in sizes, fiber cores types, fused fibers quantity. And they are all with good performance and competitive prices.
Specifications
Excellent sealing performance, reusable Compact size and rugged Suitable for ordinary fiber and ribbon fiber Overlap structure in splicing tray easy to install Inner and external push button can insure good sealing,requirements of cable torque , stretching, pressure, bending For aerial, and direct buried applications East operation with full range of accesories included 6 fiber cores: 3in-3out For 48 single fusion fibers
Scope of application
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation. The scope of application is: aerial, underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from -40℃ to +65℃

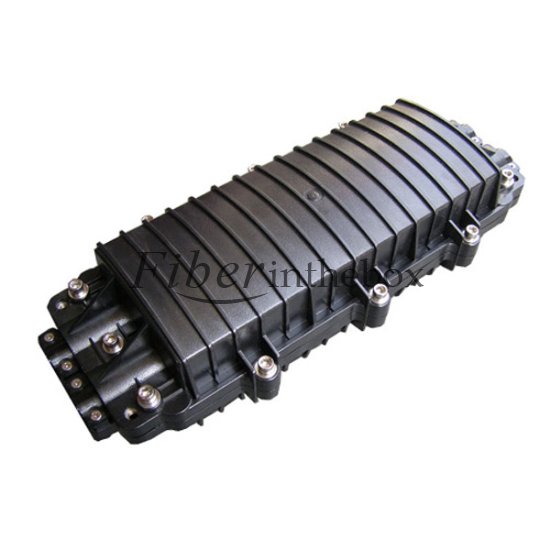

Sample Picture
Specifications

Basic structure and configuration

Dimension and capacity;


Outside dimension (LxWxH)

430x180x12 (mm)

Weight (excluding outside box)

2500g-2825g

Number of inlet/outlet ports

3 (pieces) on each side (total 6 pieces)

Diameter of fiber cable

Φ8—Φ20 (mm)

Capacity of FOSC

Bunchy: 12—96(Cores)

Ribbon: max. 144(Cores)

Main components


No.

Name of components

Quantity

Usage

Remarks

1

Housing

1 set

Protecting fiber cable splices in whole

Internal diameter:









320x120x100(mm)

2

Insert plate

2 pairs

Fixing the housing

175x56x30(mm)

3

Fiber optic splice tray (FOST)

Max 6 trays(bunchy) Max 4 trays( ribbon)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for: Bunchy:12,24(cores) Ribbon: 3 (pieces)

4

Foundation

1 set

Fixing fiber cable, reinforced core and FOST



5

Seal fitting

1 set

Sealing between FOSC cover and FOSC bottom



6

Port plug

6 pieces

Sealing empty ports



7

Pressure testing valve

1 set

After injecting air, it is used for pressure testing and sealing testing

Configuration as per requirement

8

Earthing deriving device

1 set

Deriving metallic parts of fiber cable in FOSC for earthing connection

Configuration as per requirement

Main accessories and special tools


No.

Name of accessories

Quantity

Usage

Remarks

1

Heat shrinkable protective sleeve



Protecting fiber splices

Configuration as per capacity

2

Nylon tie



Fixing fiber with protective coat

Configuration as per capacity

3

Insulation tape

1 roll

Enlarging diameter of fiber  cable for easy fixing



4

Seal tape

1 roll

Enlarging diameter of fiber  cable which fits in with seal fitting

Configuration as per specification

5

Hanging hook

1 set

For aerial use



6

Earthing wire

1 piece

Putting through between earthing devices

To put through as per actual requirement

7

Abrasive cloth

1 piece

Scratching fiber cable



8

Labeling paper

1 piece

Labeling fiber



9

Special wrench

3 pieces

Fixing bolts, tightening nut of reinforced core



10

Measuring paper

1 piece

To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape

To measure perimeter with the corresponding measuring paper

11

Buffer tube

To be decided by customers

Hitched to fibers and fixed with FOST, managing buffer

Configuration as per requirement

12

Desiccant

1 bag

Put into FOSC before sealing for desiccating air.
