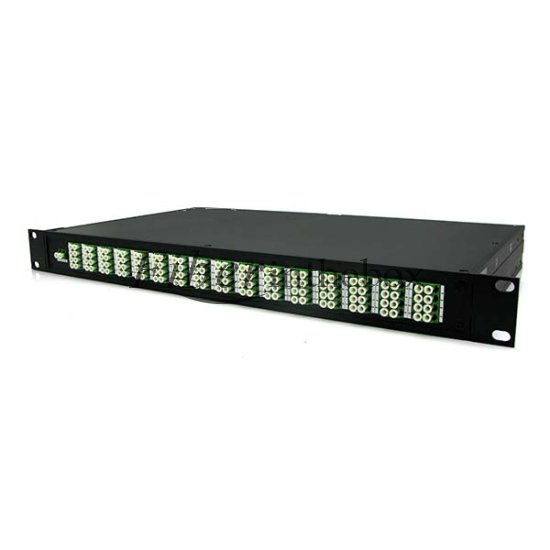

80 channels Duplex, 50GHz Athermal AWG, DWDM Mux & Demux, 2RU Rack Mount Chassis

SKU#:FITB10779FWG
Model#: 80MDD-2U-A5-FITBDWDM
Price: US$ 9,472.99
Sold: 1637
Availability: In Stock
Grid Channel:
:
:
:
Special Service:
Express Ch. Port Isolation is 15dB
as default, need 16dB ~40dB,
please contact our sales.
Monitor Port Tap percentage is 5%
as default, need 1%, 2%, 3%, or 10%,
please contact our sales.
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 9,472.99 10-19US$ 9,283.53 20-49US$ 9,094.07 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Duplex DWDM MUX & DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over two fibers.

DWDM Mux/Demux modules are pa of a series of high performance products based on silica-on-silicon planar technology. The AWG chips Fiberinthebox used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.
Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information.

Front Panel Details

Note: Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same.
Item Details
80 channels DWDM mux and demux in one 2U Rack The channel spacing for DWDM is 0.4 nm (50 GHz grid) Com po is duplex 2U 19inch Rack Mount Housing Protocol transparent (10 Mbps to 100 Gbps) Distance: Up to 80 km depending on power budget of user equipment Low inse ion loss Excellent channel isolation Epoxy-free optical path Compliant to ITU-T G.694.1, Telcordia GR-1221-CORE and GR-1209 standard. ISO 9001 manufacturing facility
Mechanical Details for Housing
Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
Specifications
50G AAWG DWDM
Parameter Unit Min. Typ. Max.
Channel Spacing GHz 50
Number of Channels 1 48, 64, 80, 88 or customize
Cha. Center Wavelength nm C-band
Clear Channel Passband GHz (+/-6.25)
Wavelength Stability nm (+/-0.05)
Passband Width (@ -1 dB) nm 0.2
Passband Width (@ -3 dB) nm 0.3
Insertion Loss * dB at ITU grid dB   6 7
Uniformity dB     2
Ripple dB     1.5
Return Loss dB 40
Directivity(Mux Only) dB 40
Adjacent Channels dB Demux: 25 Mux: 18
Non-adjacent Channels   Demux: 29 Mux: 18
Total Channel Isolation   Demux: 22 Mux: 18
PDL (Polarization Dep. Loss) in Clear dB   0.3 0.5
PMD (Polarization Mode Disp.) ps     0.5
Maximum Optical Power dBm     23
MUX/DEMUX input/output monitoring range dBm -35   23
Chromatic Dispersion ps/nm (-20 to +20)
Temperature, Operating OC (-30 to +70)
Temperature, Storage OC (-40 to +85)
*Note: Insertion Loss values do not include connector losses.


DWDM Wavelength Reference Table
ITU Grid Standard DWDM Wavelength Reference Table
Channel Frequency (THz) Center Wavelength (nm)
CH17 191.7 1563.86
CH18 191.8 1563.05
CH19 191.9 1562.23
CH20 192 1561.42
CH21 192.1 1560.61
CH22 192.2 1559.79
CH23 192.3 1558.98
CH24 192.4 1558.17
CH25 192.5 1557.36
CH26 192.6 1556.55
CH27 192.7 1555.75
CH28 192.8 1554.94
CH29 192.9 1554.13
CH30 193 1553.33
CH31 193.1 1552.52
CH32 193.2 1551.72
CH33 193.3 1550.92
CH34 193.4 1550.12
CH35 193.5 1549.32
CH36 193.6 1548.51
CH37 193.7 1547.72
CH38 193.8 1546.92
CH39 193.9 1546.12
CH40 194 1545.32
CH41 194.1 1544.53
CH42 194.2 1543.73
CH43 194.3 1542.94
CH44 194.4 1542.14
CH45 194.5 1541.35
CH46 194.6 1540.56
CH47 194.7 1539.77
CH48 194.8 1538.98
CH49 194.9 1538.19
CH50 195 1537.4
CH51 195.1 1536.61
CH52 195.2 1535.82
CH53 195.3 1535.04
CH54 195.4 1534.25
CH55 195.5 1533.47
CH56 195.6 1532.68
CH57 195.7 1531.9
CH58 195.8 1531.12
CH59 195.9 1530.33
CH60 196 1529.55
CH61 196.1 1528.77
