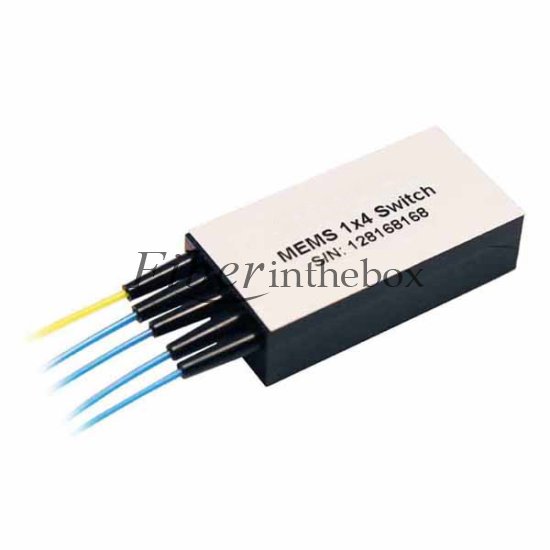

1x4 Mechanical Fiber Optic Switches/1x4 Optical Switch, Latching,Multimode
Fiberinthebox 1x4 optical fiberal switch is based on all optical fiberal-mechanical technology with proven reliability. It consists of three 1×2 optical switch units, and has 1 input po , 4 output po s. The switch is bi-directional. Therefore it can be used as 4 input po s and 1 output po . The Module is controlled by a set of electrical connections. Electrical feedback is provided to indicate the state of the optical switch.

Fiberinthebox offers cost-effective standards-based 1x4 Latching Mechanical Fiber Optic Switches. As a 3rd pa y OEM manufacturer, our 1x4 Latching Mechanical Fiber Optic Switches is delivered to worldwide from our factory directly. All our 1x4 Latching Mechanical Fiber Optic Switches are based on thin film filter technology and metal bonding micro optics packaging and our 1x4 Latching Mechanical Fiber Optic Switches are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. For more information about 1x4 Latching Mechanical Fiber Optic Switches, please contact us at sales@fiberinthebox.com .
Features
Low Inse ion Loss Wide Wavelength Range Low Crosstalk High Stability, High Reliability Epoxy-free on Optical Path Latching and Non-latching
Applications
Metropolitan Area Network R&D in Laboratory System Monitor Configurable OADM Component testing Fiber sensor
Specifications

Wavelength Range

nm

850 ± 40/1300 ± 40

1260~1650

Operating Wavelength

nm

850/980/1300/1310

1310/1550

Inse ion Loss

dB

Typ: 1.3  Max:1. 5

Return Loss

dB

MM ≥ 30 SM ≥ 50

Crosstalk

dB

MM ≥ 35 SM ≥ 55

PDL

dB

≤ 0. 1 5

WDL

dB

≤ 0. 3 5

Repeatability

dB

≤   ±0.0 5

Power supply

v

5 .0   ±  5%

Durability

Cycles

≥ 10  Million

Switch Time

ms

≤ 8

Transmission Power

mW

≤ 500

Operating Temperature

° C

-20~+70

Storage Temperature

° C

-40~+85

Relative Humidity

%

5~95

Dimension

mm

 MM:(L) 90 × (W) 58 × (H) 14 ( ± 0.2mm) SM:(L) 9 5 × (W) 7 6 × (H) 14 ( ± 0.2mm)


Note:
1. All parameters are for device without connectors.
2.Special specifications can be customized according to customer requirements.

Optical Route:


Timing Diagram:


Dimension:

Pins:

Pin No.

Signal Name

I / O

Description

1

D0

Input

Channel Selection bit 0

2

D1

Input

Channel Selection bit 1

3

NA





4

NA





5

/EN

Input

Channel Selection Enabled

6

NA





7

VCC

Input

5.0 ± 5% VDC Power Supply (max 150mA).

8

NA

Input

Ground

9

NA





10

NA





11

NA





12

NA





13

S0

Input

Switch status output bit 0

14

S1

Input

Switch status output bit 1

15

NA





16

NA





17

NA





18

NA





19

NA





20

NA




Optical Route:

Specification

Voltage

Current

Resistance

5V latching

4.5~5.5

36~44mA

125Ω

5V non-latching

4.5~5.5

26~32mA

175Ω

3V latching

2.7~3.3

54~66mA

50Ω

3V non-latching

2.7~3.3

39~47mA

70Ω
