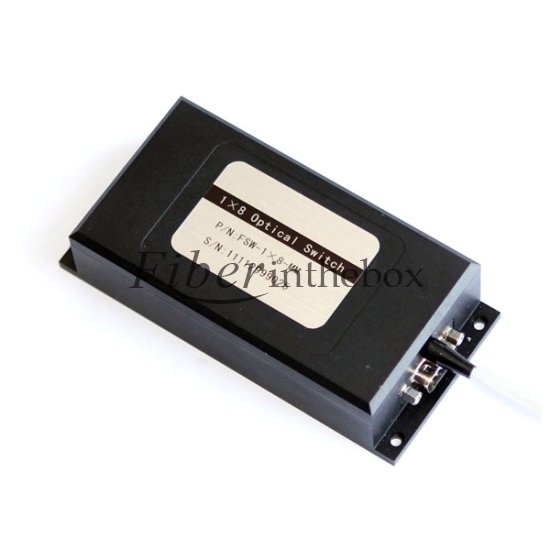

1x8 Mechanical Fiber Optic Switches/1x8 Optical Switch,Non-Latching,Single-mode
Fiberinthebox 1×8 fiber-optic switch based on an innovative waveguide conve er and a micro torsion mirror. A compact 9-fiber collimator is implemented with the waveguide conve er. With the micro torsion mirror aligned to the 9-fiber collimator, light from the central fiber can be steered to any of the other 8 fibers. The introduction of the waveguide conve er enables a smaller and faster micro torsion mirror. The switch shows good performance, inse ion loss, nonuniformity, and cross talk is <3.02 dB , <0.4 dB , and <−35 dB.

Fiberinthebox offers cost-effective standards-based 1x8 Non-Latching Mechanical Fiber Optic Switches. As a 3rd pa y OEM manufacturer, our 1x8 Non-Latching Mechanical Fiber Optic Switches is delivered to worldwide from our factory directly. All our 1x8 Non-Latching Mechanical Fiber Optic Switches are based on thin film filter technology and metal bonding micro optics packaging and our 1x8 Non-Latching Mechanical Fiber Optic Switches are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. For more information about 1x8 Non-Latching Mechanical Fiber Optic Switches, please contact us at sales@fiberinthebox.com .
Features
Low Inse ion Loss Low Crosstalk High Stability, High Reliability Epoxy-free on Optical Path
Applications
R&D in Laboratory R&DSystem Monitoring OADM OXC
Specifications

Wavelength Range

nm

850 ± 40/1300 ± 40

1260~1650

Operating Wavelength

nm

850/980/1300/1310

1310/1550

Inse ion Loss

dB

Typ: 1.3  Max:1. 5

Return Loss

dB

MM ≥ 30 SM ≥ 50

Crosstalk

dB

MM ≥ 35 SM ≥ 55

PDL

dB

≤ 0. 1 5

WDL

dB

≤ 0. 3 5

Repeatability

dB

≤   ±0.0 5

Power supply

v

5 .0   ±  5%

Durability

Cycles

≥ 10  Million

Switch Time

ms

≤ 8

Transmission Power

mW

≤ 500

Operating Temperature

° C

-20~+70

Storage Temperature

° C

-40~+85

Relative Humidity

%

5~95

Dimension

mm

 MM:(L) 90 × (W) 58 × (H) 14 ( ± 0.2mm)


Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.

Optical Route:


Timing Diagram:


Dimension:

Pins:

Pin No.

Signal Name

I / O

Description

1

D0

Input

Channel Selection bit 0

2

D1

Input

Channel Selection bit 1

3

D2

Input

Channel Selection bit  2

4

NA





5

/EN

Input

Channel Selection Enabled

6

NA





7

VCC

Input

5.0 ± 5% VDC Power Supply (max 150mA).

8

NA

Input

Ground

9

NA





10

NA





11

NA





12

NA





13

S0

Input

Switch status output bit 0

14

S1

Input

Switch status output bit 1

15

NA

Input

Switch status output bit  2

16

NA





17

NA





18

NA





19

NA





20

NA




Optical Route:

Specification

Voltage

Current

Resistance

5V latching

4.5~5.5

36~44mA

125Ω

5V non-latching

4.5~5.5

26~32mA

175Ω

3V latching

2.7~3.3

54~66mA

50Ω

3V non-latching

2.7~3.3

39~47mA

70Ω
