72 Fibers2In-3Out/3In-2Out S018 Series Heat Shrinkable Type Vertical/Dome Fiber Optic Splitter Splice Closure

SKU#:FITB03944VGK
Model#: FS018-5IO-72
MFG PART#: FS018-5IO-72
Price: US$ 59.85
Sold: 392
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 59.85 10-19US$ 58.65 20-49US$ 57.46 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

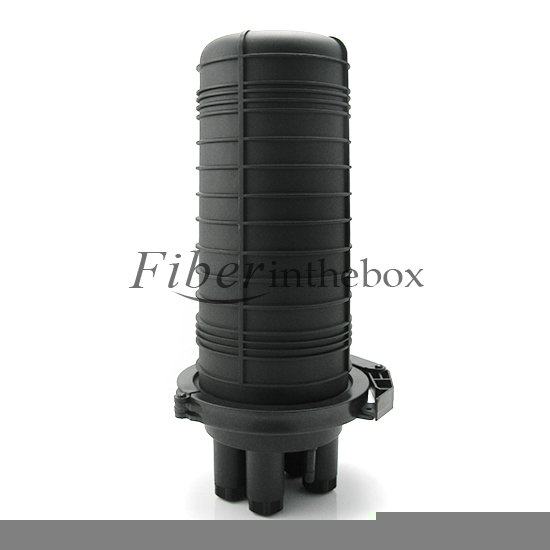

FS-S018 Series 5 Entries Ve ical/Dome Fiber Optic Splitter Splice Closures Max. Capability up to 72 Fibers
FS-S018 type of Fiber Optic Splice Closure (FOSC) is a member of dome closure series, the product adopts fully-mechanical sealing structure, only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 13mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection.
Key Features
1. It could be installed 36pcs SC/PC Pigtails of 1.5 2. It applies to PLC splitter with Max ratio 2:32 or 2*2:16. 3. This model has four small round po s and one large round po . 4. The Max quantity of SC adaptor is 36pcs. (Other types of adaptor could be customized). 5. The sealing component is made from vulcanized rubber. 6. The sealing method adopts screw pressure, sealing performance is excellent, convenient to re-open, especially suitable for optical splitter used. 7. Adopt modified PP material with high strength and anti-corrosion to make the closure have a longer lifetime and excellent sealing performance. 8. There are various sealing accessories of soft cable to be chosen
Main Technical Parameters
The application of temperature : -40℃~65℃ Atmospheric pressure: 70~106KPa Resist pull: >1000N Resist pressure: >2000N/10cm2pressure, time 1min Insulation resistance: >2×104MΩ Dielectric strength: 15KV (DC)/1 min spark-over and no flying arc.
Specifications
Applies to PLC splitter Fully-mechanical sealing structure IP safety rate is IP68 The sealing method adopts screw pressure This model is suitable for different methods of branch connection, including branching of uncut cable. It could be used for aerial, pole-mounting, wall-mounting and underground application. The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment. Number of fibers:72Length:420 mm ,Diameter:190 mm Weight: 3.5kg
Note: This Fiber Splice Closure belongs to Fiber Optic Splitter type and the charges include the Flange Mounting Bracket
Sample Pictures
Specifications

Basic structure and configuration

Dimension and capacity;

Outside dimension (LxD)

420mm×190mm

Weight (excluding outside box)

2300g-2500g

Number of inlet/outlet ports

5

Diameter of fiber cable

Φ8mm - Φ25mm

Capacity of FOSC

Bunchy: 24—96(fibers)

Ribbon: 144(fibers)

Main components


No.

Name of components

Quantity

Usage

Remarks

1

FOSC cover

1 piece

Protecting fiber cable splices in whole

Internal diameter:









355 ×150(mm)

2

Fiber optic splitter tray

2 trays for 1x16,3 trays for 1x32

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for: 24 cores

3

Fiber holding tray

1 pcs

Holding fibers with protective coat



4

Foundation

1 set

Fixing fiber cable, reinforced core and FOST



5

Base

1 set

Fixing internal and external structure



6

Seal fitting

1 pieces

Sealing between FOSC cover and base



7

Pressure testing valve

1 set

After injecting air, it is used for pressure testing and sealing testing

Configuration as per requirement

8

Earthing deriving device

1 set

Deriving metallic parts of fiber cable in FOSC for earthing connection

Configuration as per requirement

Main accessories and special tools


No.

Name of accessories

Quantity

Usage

Remarks

1

Heat shrinkable protective sleeve



Protecting fiber splices

Configuration as per capacity

2

Nylon tie



Fixing fiber with protective coat

Configuration as per capacity

3

Heat shrinkable fixing sleeve (single)



Fixing and sealing single fiber cable

Configuration as per requirement

4

Seal tape



Fixing and sealing mass of fiber cable

Configuration as per specification

5

Branching clip



Branching fiber cables

Configuration as per requirement

6

Earthing wire

1 piece

Putting through between earthing devices



7

Desiccant

1 bag

Put into FOSC before sealing for desiccating air



8

Labeling paper

1 piece

Labeling fiber



9

Special wrench

1 pieces

Tightening nut of reinforced core



10

Metal hoop

1 set

For wall mounting and pole hugging



11

Buffer tube

To be decided by customers

Hitched to fibers and fixed with FOST, managing buffer

Configuration as per requirement

12

Aluminum-foil paper

1 piece

Protect the bottom of FOS
