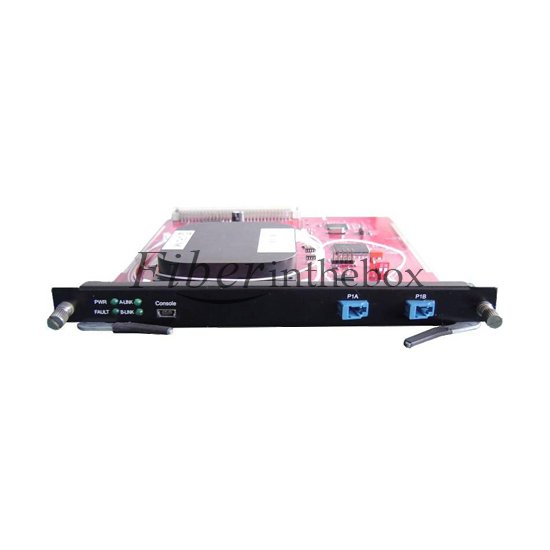

New 16dB DWDM EDFA Multiple Wavelength PA Gain 20dB Erbium-Doped Optical Fiber Amplifier

SKU#:FITB56605AQJ
Model#: FITB-OEO800-EDFA-PM-16G20
Price: US$ 3,187.25
Sold: 2886
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 3,187.25 10-19US$ 3,123.51 20-49US$ 3,059.76 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

FITB-OEO800-EDFA Multiple Wavelength Series

FITB-OEO800-EDFA is a kind of erbium-doped optical fiber amplifier. It can regenerate optical signals of multiple wavelengths without conversion from optical to electrical to optical, which prolongs the transmission distance. Wavelength division multiplexing can be realized by using C/DWDM multiplexer or de-multiplexer, which specially applies to long-haul backbone network, metropolitan area network, access network as well as various SDH/PDH transmission systems.

Key Features
The gain can be adjusted if required It is with high gain, low noise and good gain flatness ACC, APC and AGC are optional It suppo s amplifcation on the two stages, OADM or DCM modules can be accessed in the middle It is with small-size and modular design and suppo s hot swapParameters of graphical interfaces can be set and viewedBA: Power Amplifier PA: Preamplifier
Specification
Parameter Minimum Value Typical Value Maximum Value Unit
Operating Wavelength 16 Channels 1546   1561 nm
32 Channels 1535   1562
40 Channels 1528   1565
Input Power Power Amplifier (OBA) -14   -5 dBm
Preamplifier (OPA) -38   -5
Output Power     23 dBm
Gain 14   33 dB
Noise Index Power Amplifier (OBA)   5.0   dB
Preamplifier (OPA)   4.5
Gain Flatness   1.0   dB

Typical Application Cases of FITB-OEO800 Series

Site-to-Site Standard Transmission


Site-to-Site Ultra-Long-Haul Transmission With Repeater



Ultra-Long-Haul Repeaterless Transmission



Unidirectional WDM Transmission



Specifications
Parameter Minimum Value Typical Value Maximum Value Unit
Operating Wavelength 16 Channels 1546   1561 nm
32 Channels 1535   1562
40 Channels 1528   1565
Input Power Power Amplifier (OBA) -14   -5 dBm
Preamplifier (OPA) -38   -5
Output Power     23 dBm
Gain 14   33 dB
Noise Index Power Amplifier (OBA)   5.0   dB
Preamplifier (OPA)   4.5
Gain Flatness   1.0   dB
