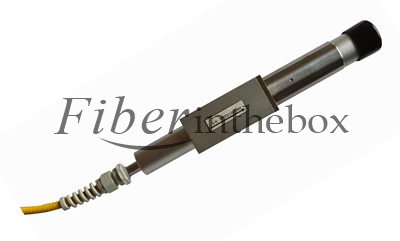

Fiberinthebox high power components HPCFSI-1064-10 is 1064nm 20w 3.0mm loose tube HI1060 fiber 1M Output Beam Diameter :8mm。 It also can customize rang from 780nm to 1550nm and handling power from 300mW to 100W or other on request. Low inse ion loss, high isolation, high power handling, high return loss, high extinction ratio and excellent environmental stability and reliability.
|
Parameters |
Unit |
Values |
|
Center Wavelength |
nm |
1064 or Specify |
|
Operating Wavelength Range |
nm |
±10 |
|
Typ. Peak Isolation |
dB |
30~35 |
|
Min. Isolation at 23℃ |
dB |
25 |
|
Typ. Transmission |
- |
93% |
|
Min. Transmission |
- |
90% |
|
Min. Return Loss |
dB |
50 |
|
Min. Extinction Ratio(Fast Axis blocked) |
dB |
20(only for Panda fiber) |
|
Nominal Output Beam Diameter(1/e^2) |
mm |
0.5, 1, 5, 8, 10, or Specify |
|
Fiber Type |
- |
PM980 Panda Fiber, Hi1060 or specify |
|
Max. Optical Power (CW) |
W |
5, 10, 20, 30, 50 or specify |
|
Operating Temperature |
℃ |
-5 ～+50 |
|
Storage Temperature |
℃ |
-20～+75 |
Dimension
.jpg)
Order Information
|
HPCFSI |
Wavelength |
Handing Power |
Output Beam Diameter |
Pigtail Type |
Fiber Type |
Output Beam Diameter |
Fiber Length |
Fiber Length |
|
|
1=1064 |
1=1W |
0.5=0.5mm |
1=900um Loose |
1=PM980 |
07=7mm |
0.8=0.8m |
0.8=0.8m |
