1x8 Fiber Optical Splitter SPCC Terminal Box As Distribution Box FITB-CJS-8A

SKU#:FITB71430LXW
Model#: FITB-CJS-8A
Price: US$ 25.65
Sold: 77
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 25.65 10-19US$ 25.14 20-49US$ 24.62 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

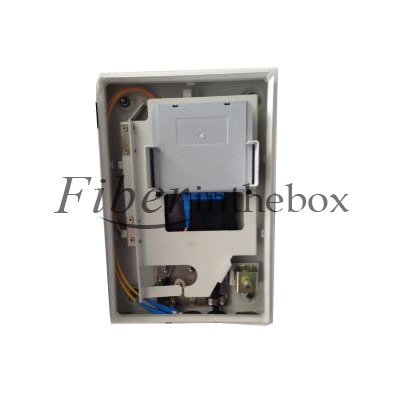

1x8 Fiber Optical Splitter Steel Plate Cold rolled Commercial Terminal Box As Distribution Box FS-CJS-8A
Fiberinthebox's Inse Fiber Optical Splitter Terminal Box belongs to distribution box, it is mainly used Blade Design, and which is equipped with splitter module, PLC splitter and connector. The material of this box is usually made ​​of PC, ABS, SMC, PC+ABS or SPCC. The box is suitable for fiber terminational point to complete connection, distribution and scheduling between perimeter fiber cables and terminal equipment. Therefore it widely used in optical fiber communication network project.

Note: This box does not contain Fiber Splitters and Splitter Module. If you need them, we can install them for you with few chargers.

Features
Sufficient slot design Plug in type splitter design Easy and save time for adjust fiber Easy and convenience for installation Install in the wall or telegraph pole Upper layer light splitting,Lower layer splicing Specific FTTH cable and outdoor cable lock device Use the mounting plate seperating the up and down
Specifications
Box Type: A Fiber Splitter: 1x8  Box Material: SPCC Box Dimensions: 320x160x65 mm
Performance Index
ITEM
FS-CJS-8A
FS-CJS-16A
FS-CJS-32A
FS-CJS-64A
FS-CJS-16B
FS-CJS-32B
FS-CJS-64B
Size (mm)
320x160x65
380x330x80
420x380x100
460x400x180
350x340x100
460x340x1000 mm
460x420x160 mm
Weight (KG)
5 KG
7 KG
9.5 KG
12.5 KG
8 KG
10 KG
13 KG
1x8 Plug in Type Splitter
1x8 PLC (available)
2pc=2x{1x8 PLC}(available)
3pc=3x{1x8 PLC}(available)
4pc=4x{1x8 PLC}(available)
2pc=2x{1x8 PLC}(available)
4pc=4x{1x8 PLC}(available)
8pc=8x{1x8 PLC} (available)
1x16 Plug in Type Splitter
-
1pc=1x16 PLC (available)
2pc=2{1x16 PLC}(available)
4pc=4x{1x16 PLC}(available)
1pc=1x16 PLC (available)
2pc=2{1x16 PLC}(available)
4pc=4{1x16 PLC}(available)
1x32 Plug in Type Splitter
-
-
1pc= 1X32 PLC (available)
2pc=2x{1X32 PLC}(available)
-
1pc= 1X32 PLC (available)
2pc=2x{1X32 PLC}(available)
