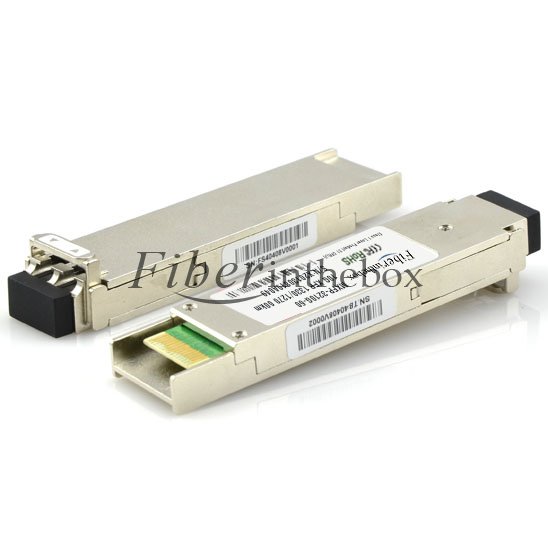

10GBASE MultiRate 1330nmTX/1270nmRX BIDI XFP 10km Single-Mode Optical Transceiver

SKU#:FITB04232NZJ
Model#: BMXFP-10G32-10-xx
xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)
Price: US$ 150.92
Sold: 4795
Availability: In Stock
:
Looking for a perfect transceiver? Fiberinthebox provide customized solutions for all needs and specifications,like P/N,S/N,Vendor Name,Label,etc. We create a made-to-order transceiver just for you. Please email us at sales@Fiberinthebox.com for your additional customized requirements.
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 150.92 10-19US$ 147.90 20-49US$ 144.88 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
BMXFP-10G32-10-xx
10km MultiRate BIDI XFP transceiver comply with XFP MSA, and can suppo diverse applications for SDH/SONET equipment including FEC (9.95Gb/s to 10.7Gb/s),as well as Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) applications. The high performance cooled 1550nm cooled EML transmitter and high sensitivity PIN receiver provide superior performance for SONET /SDH and Ethernet applications at up to 10km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Key Features
Up to 11.1 Gb/s Data Link Power budget 9dB at least 1270nm DFB Transmitter/ 1330nm Receiver LC Connector +3.3V power supply only Power dissipation <2W Built-in digital diagnostic functions Case temperature range:Standard: 0~+70℃ Complaint with XFP MSA Complaint with IEEE 802.3ae 10GBASE-LR/LWAverage Output Power:-5~0dBmReceiver Sensitivity:-14dBm Complaint with 10GFC 1200-SM-LL-L
Applications
10GBASE-LR 10G Ethernet at 10.3125Gbps10GBASE-LW 10G Ethernet at 9.953Gbps1200-SM-LL-L 10G Fiber Channel at 10.51875Gbps
Ordering Information
Pa No. Data Rate (Gbps) Wavelength (nm) TX Power (dBm) Re Sens. (dBm) Transmission Distance Fiber Type Connector Type Temp. Range Digital Diagnostics
BMXFP-10G23-10-xx 8.5~11.1 1270/1330 -5 ~ 0 ﹤ -14 10km SMF LC 0~70 ℃ Yes
BMXFP-10G32-10-xx 8.5~11.1 1330/1270 -5 ~ 0 ﹤ -14 10km SMF LC 0~70 ℃ Yes
BMXFP-10G23-20-xx 8.5~11.1 1270/1330 -2~3 ﹤ -14 20km SMF LC 0~70 ℃ Yes
BMXFP-10G32-20-xx 8.5~11.1 1330/1270 1~5 ﹤ -15 20km SMF LC 0~70 ℃ Yes
BMXFP-10G23-40-xx 8.5~11.1 1270/1330 1~5 ﹤ -15 40km SMF LC 0~70 ℃ Yes
BMXFP-10G32-40-xx 8.5~11.1 1330/1270 1~5 ﹤ -15 40km SMF LC 0~70 ℃ Yes
BMXFP-10G23-60-xx 8.5~11.1 1270/1330 1~5 ﹤ -20 60km SMF LC 0~70 ℃ Yes
BMXFP-10G32-60-xx 8.5~11.1 1330/1270 1~5 ﹤ -20 60km SMF LC 0~70 ℃ Yes
Notesxx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply BMXFP-10G32-10-xx according to your requirements, and design BMXFP-10G32-10-xx label and packaging for your company. We welcome any inquiry for customized BIDI XFP optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.



Details


Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying MultiRate BIDI XFP From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of MultiRate BIDI XFP transceivers. All of our MultiRate BIDI XFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee MultiRate BIDI XFP transceivers to work in your system and all of our MultiRate BIDI XFP transceivers come with a lifetime advance replacement warranty. If you have questions about MultiRate BIDI XFP optics, please feel free to contact us at sales@fiberinthebox.com .
