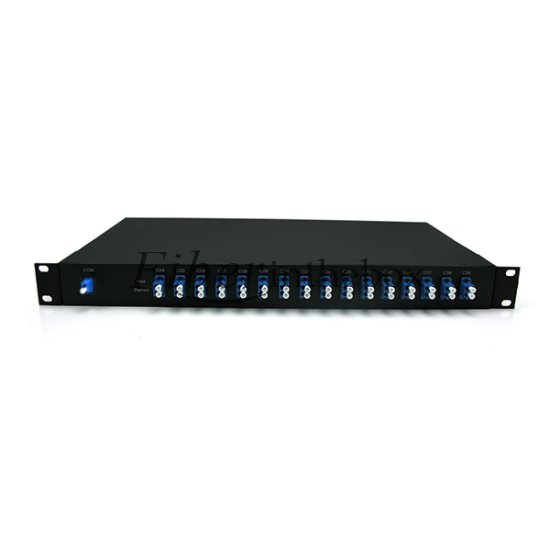

24 channels Simplex BIDI, Side B, 100GHz Thermal AWG, DWDM Mux & Demux, 1RU Rack Mount Chassis

SKU#:FITB50079FHR
Model#: 24MDS-1U-T1-B-FITBDWDM
Price: US$ 888.19
Sold: 3934
Availability: In Stock
:
MUX Channel:
DEMUX Channel:
:
:
Special Service:
Express Ch. Port Isolation is 15dB
as default, need 16dB ~40dB,
please contact our sales.
Monitor Port Tap percentage is 5%
as default, need 1%, 2%, 3%, or 10%,
please contact our sales.
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 888.19 10-19US$ 870.43 20-49US$ 852.66 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Simplex DWDM MUX & DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over one fiber.

DWDM Mux/Demux modules are pa of a series of high performance products based on silica-on-silicon planar technology. The AWG chips Fiberinthebox used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.
Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information.

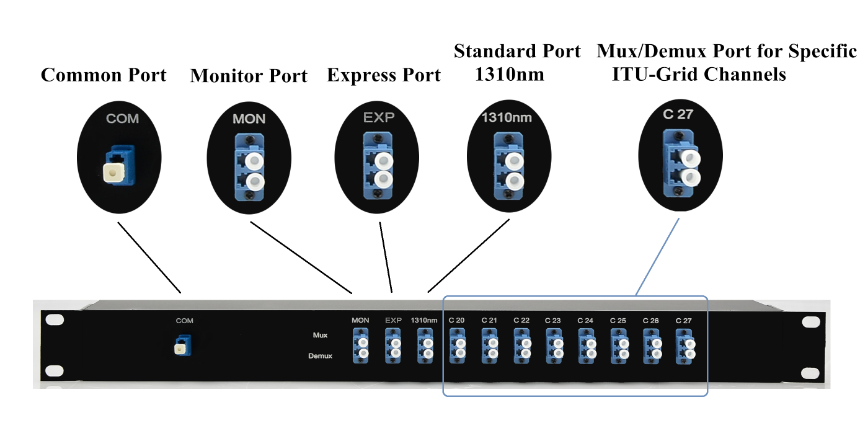

Front Panel Details

Note: Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same.
Item Details
24 channels DWDM mux and demux in one 1U Rack The channel spacing for DWDM is 0.8 nm (100 GHz grid). 1.6nm (200GHz) also available on request. Com po is simplex 1U 19inch Rack Mount Housing Protocol transparent (10 Mbps to 100 Gbps) Distance: Up to 80 km depending on power budget of user equipment Low inse ion loss Excellent channel isolation Epoxy-free optical path Compliant to ITU-T G.694.1, Telcordia GR-1221-CORE and GR-1209 standard. ISO 9001 manufacturing facilityIt should be used with 24 channels, Type A, 1RU Rack Mount, Simplex BIDI, DWDM Mux & Demux.
Mechanical Details for Housing

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
Specifications
100G  TAWG DWDM Speicification
Parameter Unit
    Gaussian Flat-Top
ITU Band GHz ±12.5
Channel Spacing GHz 100
Number of channels 24, 32, 40,  44, 48 or customize
Wavelength accuracy Max nm 0.05
Insertion Loss Max dB 4.5 6
-1dB passband Min nm 0.2 0.4
-3dB passband Min nm 0.4 0.6
Isolation Adjacent Channel Min dB 27
Non-adjacent Channel Min dB 35
Total Crosstalk Min dB 23 23
Ripple in Passband Max dB 1
Polarization Dependent Loss Max dB 0.8
Directivity Min dB 50
Return Loss Min dB 45
Polarization Mode Dispersion Max ps 0.5
Power Handling Max mW 300
Drive voltage (Heater) Type V 5
Drive current (Heater) Type A 2
Fiber Type   Simplex, Duplex or customized Fiber
Operating Temperature °C 5~70
Storage Temperature °C -40~85
