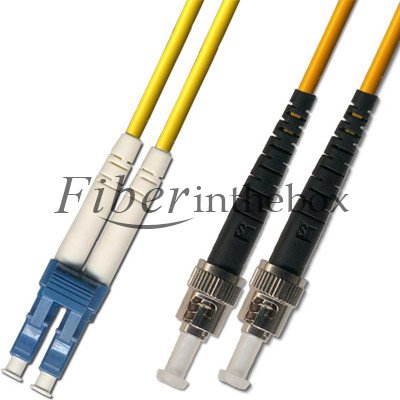

ST/APC to LC/UPC Plenum Duplex 9/125 Single-mode Fiber Patch Cable

SKU#:FITB11965WIY
Model#: SM-STA-LCU-PDX-FITB
Price: US$ 3.50
Inventory changes frequently, please kindly contact us at service@fiberinthebox.com before placing an order
Sold: 4516
Availability: In Stock
:
The diameter is refer to the thickness of the fiber,please choose the size of the cable to match the corresponding equipment port.
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-199US$ 3.50 200-299US$ 3.43 300-499US$ 3.36 500-999 Sign in to view 1000+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
ST/APC-LC/UPC Plenum(OFNP) Duplex 9/125 Single-mode Fiber Patch Cable
Plenum-rated fiber optic cables are different from other types of cabling by the special types of plastics used in the fiber optic cable jackets. Because plenum cables are routed through air circulation spaces, which contain very few fire barriers, they need to be coated in flame-retardant, low smoke materials. These plastics offer good resistance against possible fire, and in the event that they do begin to burn, they will not emit large quantities of harmful fumes.

Fiberinthebox’s Plenum Fire Rated fiber cables provide a low cost option for gigabit Ethernet network applications. Plenum rated cables are used for running in walls and air plenums without the use of conduit. Each cable is tested for optical integrity and loss prior to packaging to ensure proper data transmission. The durable rubber boots protects against damage typical in busy data racks and each end is properly labeled for easy identification.
Applications
Fiber Network Deployments Fast Ethernet Gigabit Ethernet Infiniband ATM Other Data Applications Requiring High Transfer Rates

According to National Electric Code (NEC), a plenum is a "compa ment or chamber to which one or more air ducts are connected and forms pa of the air distribution system." that is to say, as a plenum, the space above an acoustic tile ceiling would have to extend above other rooms in the same building or be open to ducts connecting it to other pa s of the building. The concern is that during a fire, if there is burning material in a plenum air space, smoke and fumes can travel through air ducts to the whole building. For this reason, there are codes to restrict the types of materials (such as cables) that can be placed in the plenum.
Features
Connector: ST/APC-LC/UPC Strand Count: Duplex (2-Strand) Core/cladding diameter: 9/125um Jacket: OFNP (Plenum-rated) Immune to electrical interference 100% optically inspected and tested for inse ion loss Attenuation: 850nm: 3.5 dB/ km or at 1300nm: 1.0 dB/ km RoHS Compliant
Specifications
Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Inse ion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature ? -40~75 -40~75 -40~75 -40~75
Storage temperature ? -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9
Custom OEM


Fiberinthebox are manufacturer and supplier of fiber optic cable. If you have any special requirement, Please contact us by email to sales@fiberinthebox.com .

Note:
Although the National Electric Code may allow non-plenum cable, the final decision is up to your local Fire Marshall. Most cities adopt the national codes as their own without revision, but some cities modify or expand them and require plenum-rated cable in all situations. Regardless of the code or its interpretation, your Fire Marshall makes the final decision. We recommend that you contact your Fire Marshall if you have questions.
