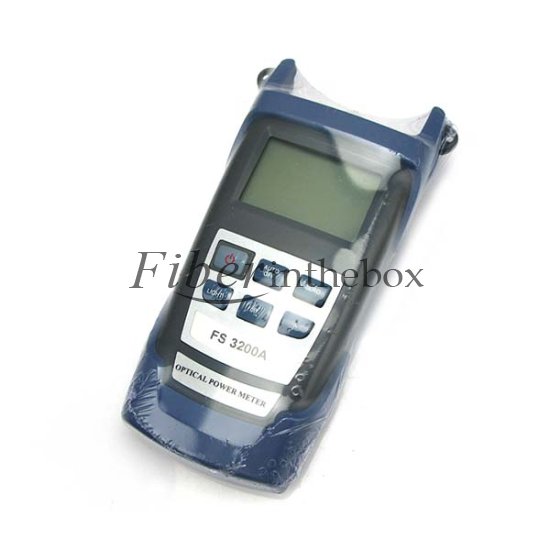

FS3200A Series Handheld Optical Power Meter(-70~+10dBm)

SKU#:FITB01750QZC
Model#: FS3200A
Price: US$ 42.75
Sold: 3992
Availability: In Stock

Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
FS3200 is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. The FS3200A power meter features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio. And a special discount will be given you want this FS3200A optical power meter at a large quantity, so please do not hesitate to contact us.



Features
User self calibration function
Comfo able LCD display and optional backlight
LCD display suppo s night operation
Power measurements in dBm or mw and inse ion loss in dB
Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
Optional 10 minutes Auto-off function



Applications
Maintenance in Telecom
Test Lab of optical fibers
Other Fiber Optic Measurements



Standard Package
FS3200A optical power meter
FC/ Universal 2.5mm adaptor
User manual
Cotton swabs
Soft carrying case

View Detailshttps://www.Fiberinthebox.com



Specifications

Type
FS3200A FS3200B
Wavelength(nm) 800~1700nm
Detector InGaAs
Measurement Range  -70~+10 -50~+26
Uncertainty +5%
Calibrated Wavelength(nm) 850,980,1300,1310,1490,1550 1625 (more calibrated wavelengths can be optional)
Resolution(dB) Linear 0.1% or Non-linear 0.01dBm
Optical Connector  FC/Universal 2.5mm adapter (SC,ST interchangeable connector can be optional)
Power Supply  Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time  240 h with 1.5V Battery(3)
Operating Temperature(°C)  -10 ~ +60
Storage Temperature(°C)  -25 ~ +70
Relative Humidity  95% (+30°C)
Dimension(mm)  152x74x26
